Special Note:
-Can not be used for motors; starting products whose current exceeds the rated current
-Cannot be used for car power supply
-Cannot be used for battery charger
-Cannot be used for heating wire power supply
-Cannot be used for laboratory chemical electrolysis
Feature:

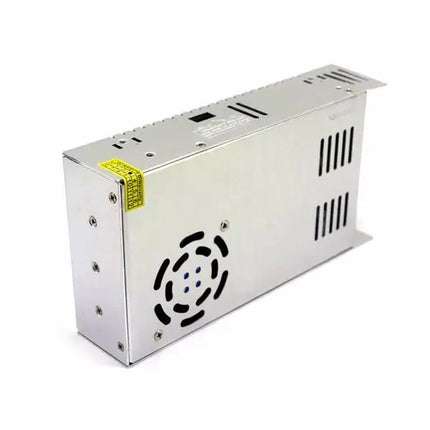

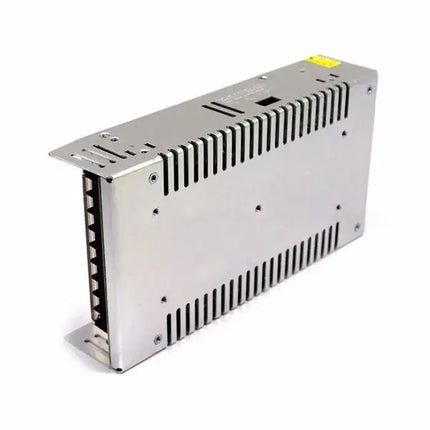

- Switching power supply to convert AC 110V / 220V to DC 48V.
- There is a switch; please select the appropriate voltage before use.
- High-power transformers for electronic equipment; LED lighting; household appliances; radios; security cameras; computers; etc.
- Widely used in industrial automation; LED display; electronic equipment; communication; etc.
The input voltage range is wide and the output voltage is stable and accurate.
- Smart device surge protection for short circuit protection; overload protection; over voltage protection.
Special Note: Cannot be used in motors; starting products with current exceeding the rated current
Specification:
Color: silver
material: metal
Input voltage: 110V/220V ±1% (85-145V; 185-265V)
Output voltage: DC48V
Output current: up to 12.5A
Difference range: ±1%
Efficiency: >80%
Output adjustable voltage range: ± 5%
Frequency: 50-60Hz
Product weight: 0.86KG
Leakage current: <1mA/230V
Temperature coefficient: ±0.03%/°C (0~50°C)
Start; rise; hold time: 200ms; 50ms; 20ms
Shock resistance: 10~500Hz; 2G 10min; /1 cycle; duration 60 minutes; each axis
Protection: overload overvoltage and overcurrent short circuit protection
Pressure resistance Input and output: 1.5KvAC input and housing; 1.5KvAC output and housing; 0.5KvAC
Working temperature; humidity: -10 ° C ~ +60 ° C; 20% ~ 90% RH
Storage temperature; humidity: -20 ° C ~ +85 ° C; 10% ~ 95% RH
Product size: 215x115x50MM
Package includes:
Switching power supply*1 (Highly recommended for professionals to buy; no manual)
